Premium Quality Replacement Part
Deck Spindle and Blade with Bolt / Tapered Spacer
Compatible with Scag Models:
SMZ-52 (4240001-4249999) 52″
SSZ-18CV (60001-79999) 52″
SSZ-20CV (3460001-3469999) 52″
SSZ-20CV (40000-49999) 52″
SSZ-20CV (60001-79999) 52″
SSZ-22CV (3470001-3479999) 52″
SSZ-22CV (40000-49999) 52″
SSZ-22CV (4230001-4239999) 52″
SSZ-22CV (60001-79999) 52″
Order Includes:

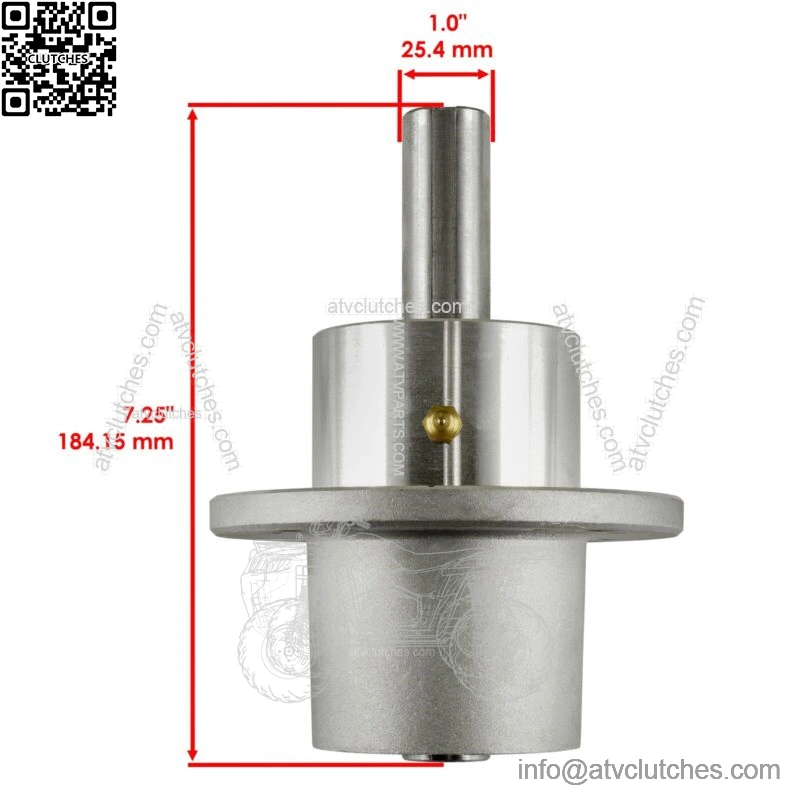

3 x Spindle: 46020, 46400
Height: 184.14 mm – 7.25 in
Shaft Diameter: 25.4 mm – 1 in
Mounting Hole Distance: 114 mm – 4.5 in
Material: Aluminum
3 x Blade (High Lift): 482878, 48108, 481707, 481711
48185, 482642, 482878, A48108, A48185
Length: 547.2 mm – 18 in
Width: 63.4 mm – 2.50 in
Thickness: 5.6 mm – 0.22 in
Center Hole: 16.2 mm – 0.63 in
3 x Bolt: 04001-41
Length: 250.82 mm – 9.87 in
Thickness: 15.7 mm – 0.61 in
5/8-11
3 x Spacer Tapered Spindle: 43591, 43279, 43235
Inner Diameter: 16.7 mm – 0.65 in
Outer Diameter: 38 mm – 1.49 in
Width: 25.6 mm – 1.0 in
