Premium Quality Replacement Part
Front Rear Upper Lower Inner A-Arm Bushing Kit
For Polaris Models:
General 1000 2016-2022
A-Arm Part Number:
Front Upper Left 1021418-133 1021418-458 1023061-458 1023223-647 1023223-458
Front Upper Right 1021419-133 1021419-458 1023062-458 1023224-647 1023224-458
Front Lower Left 1021416-133 1021416-458
Front Lower Right 1021417-133 1021417-458
Rear Lower Left 1021414-133 1021414-458 1021414-647
Rear Lower Right 1021415-133 1021415-458 1021415-647

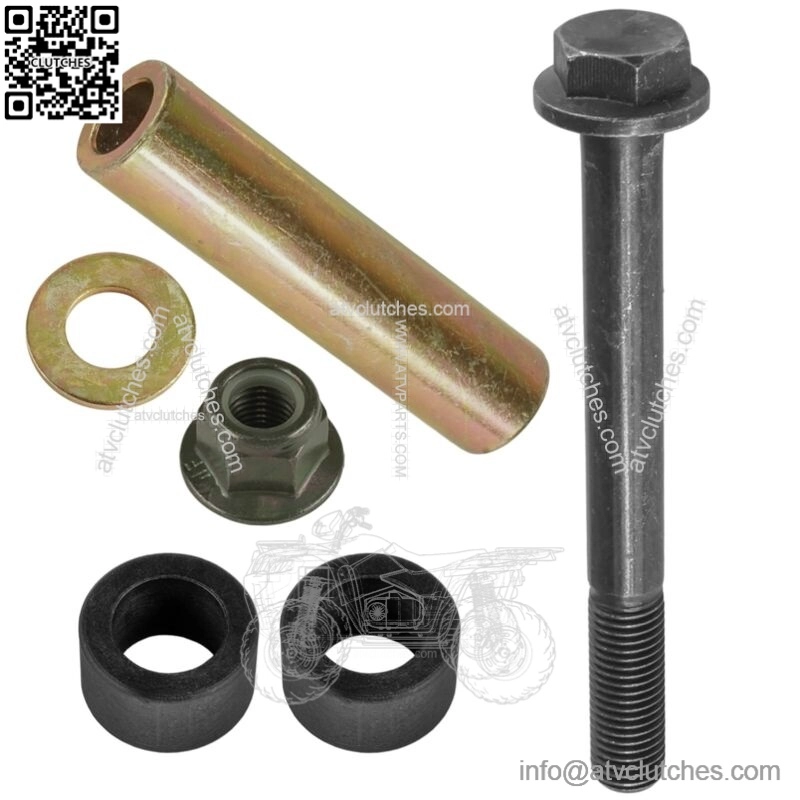

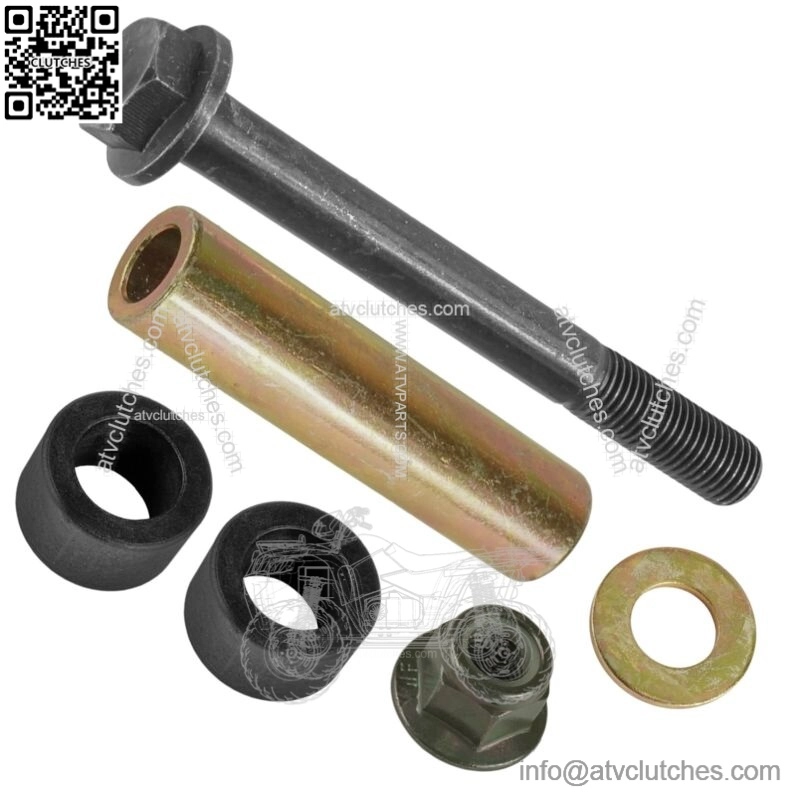

Order Includes:
1 x Pivot Shaft | 5139966
2 x Bushing | 5452233

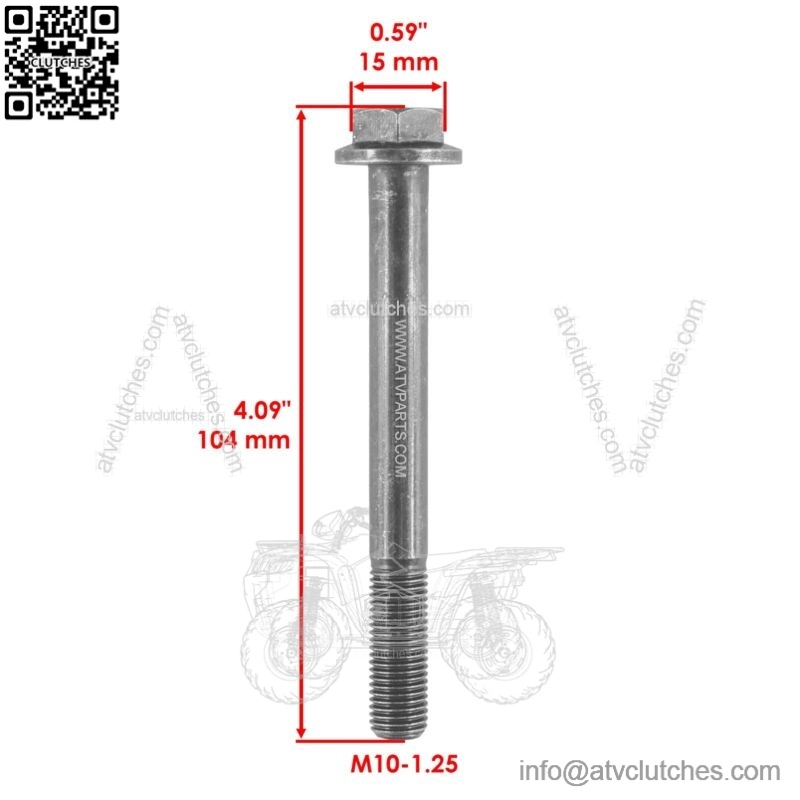

1 x Bolt | 7519043
1 x Nut | 7547333
1 x Washer | 7556153
Dimensions & Measurements :

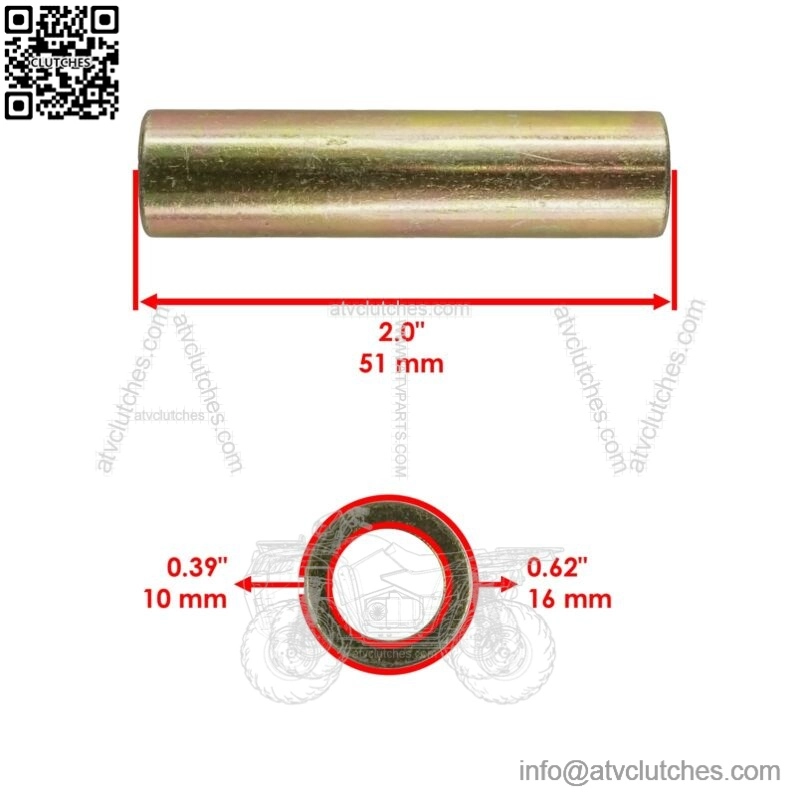

Pivot Shaft
Length:51mm
Inner Diameter:10mm
Outer Diameter:16mm
Bushing
Outer Diameter:26mm
Inner Diameter:16.5mm
Height:15.5mm

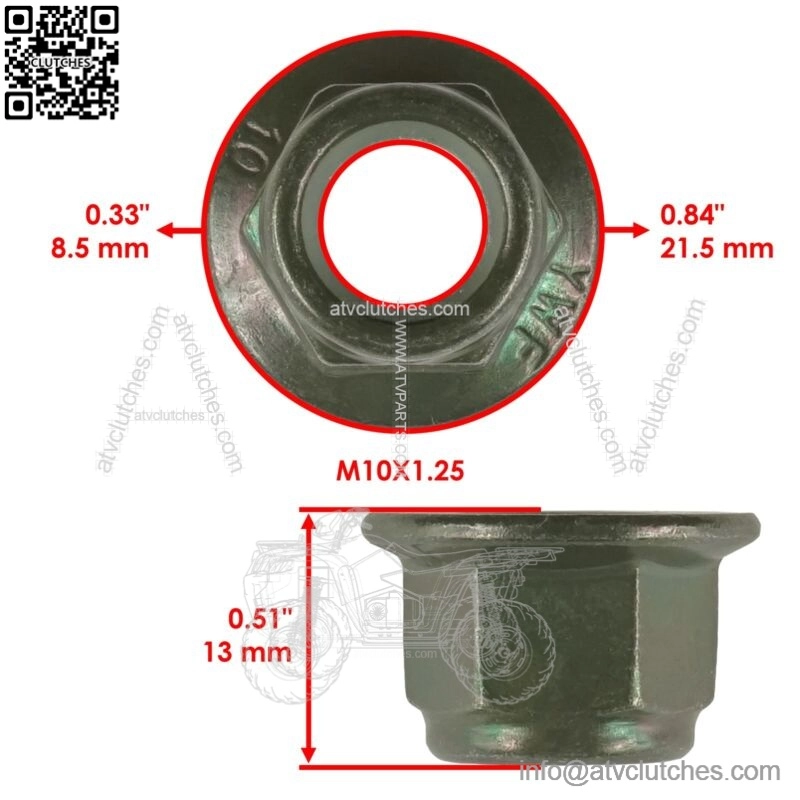

Nut
M10x1.25
**
