Fitment Chart:
Years Make Model Transmission
1985-1986 Toyota MR2 Manual
Specifications:

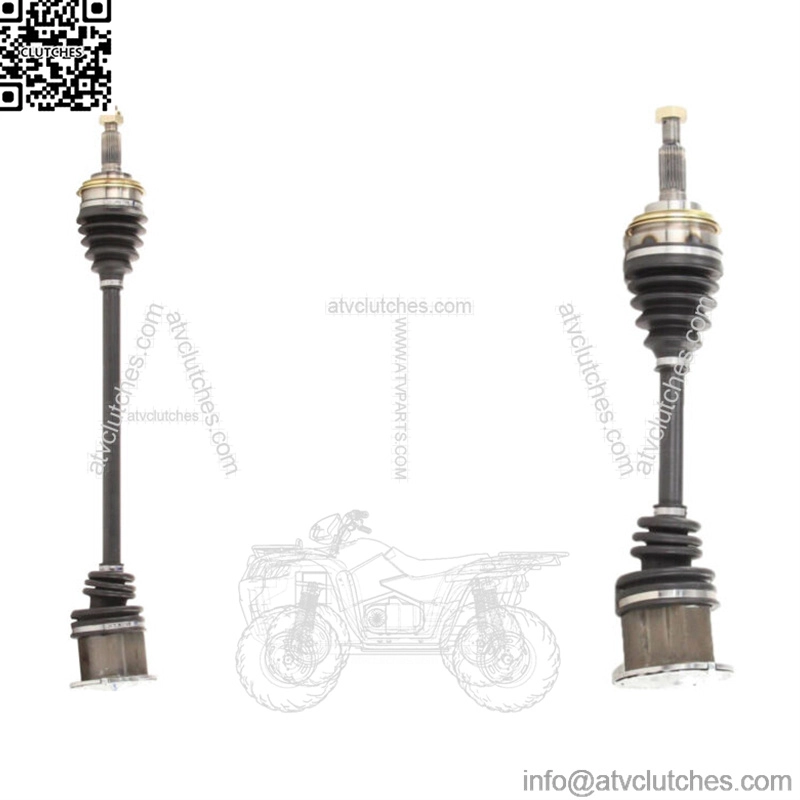

Part Category: CV Axle Shaft
Manufacturer Part Number: Kit-792
Vehicle Position: Rear Left, Rear Right
Placement on Vehicle: Rear
Label: CV Axle Shaft
Product Type: Factory Replacement
Type: CV Axle Shaft
Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (in): 2/3,3/7
Axle Nut Height (mm): 11,17
Axle Nut Hex Size (in): 1 1/6
Axle Nut Hex Size (mm): 29.8,30
Axle Nut Included: Yes
Axle Nut Length (in): 1 1/3
Axle Nut Length (mm): 34.4,34.6
Axle Nut Locking Type: Cotter pin,standard
Axle Nut Thread Size: M19*1.5
Boot Material: Neoprene
Inboard Joint Type: Flange
Inboard Shaft Connection Style: Flange
New Or Remanufactured: New
Number Of Outboard Splines: 26
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional,spline
Overall Compressed Length (in): 20.24,29.8
Overall Compressed Length (mm): 514,757
Interchange Part Number: 4233017020 44234017022 60-5350 CV1402 TO-8071 TO-8357
