Rear CV Axles for Can-Am Outlander & Renegade 650 850 & 1000 4×4
Rear CV Axles for Can-Am Outlander & Renegade 650 850 & 1000 4×4
Rear CV Axles for Can-Am Outlander & Renegade 650 850 & 1000 4×4

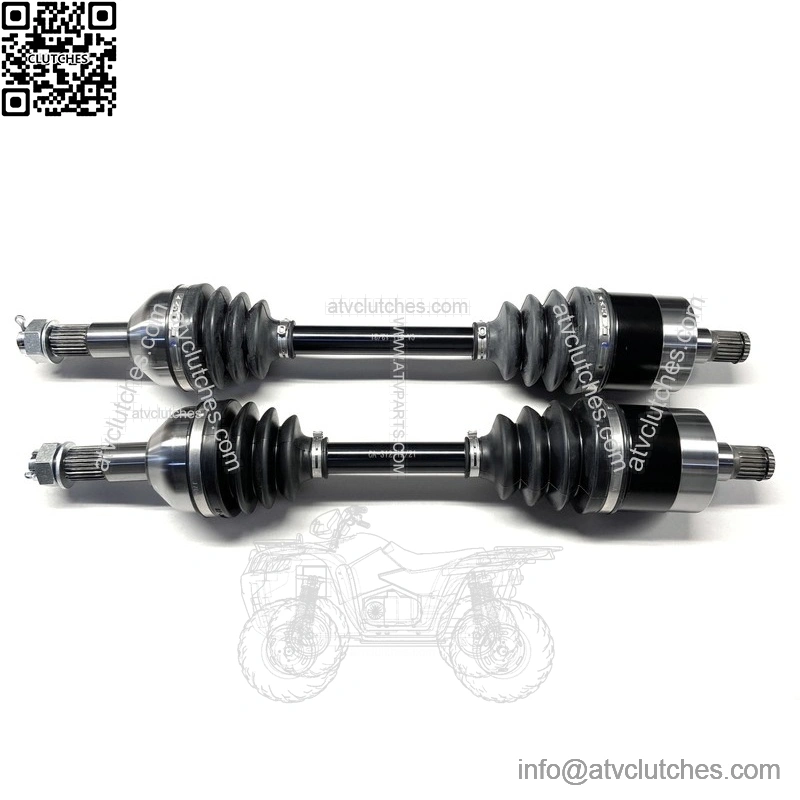

This is a pair of new, fully assembled, CV axles for a Can-Am ATV.
They fit REAR, LEFT & RIGHT on the following (excluding XMR models):
2019-2023 Outlander 650/MAX 4×4
2019-2023 Outlander 850/MAX
2019-2023 Outlander 1000/MAX 4×4
2019-2022 Renegade 570
2019-2022 Renegade 850
2019-2023 Renegade 1000
(please note these will not fit XMR models)
*Made as an OE replacement, and is not intended for lifted/ modified vehicles
Product features:
Stronger than OEM chromoly forged steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Inboard CV joint spline count: 24 (both)
Outboard CV joint spline count: 26 (both)
Compressed overall axle length: Left – 575mm, Right – 535mm
